| Features - Hyson Cells Specifications
|
|
|
|
The code has the format AAA / BBB x CCC e.g. 300/210x100 where :
|
Dimensions of bale containing collapsed module. |

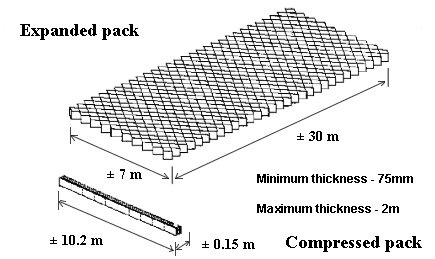

A rough volumetric guide for bales is 1m x 1m x cell-depth per 100 m² module. Volume may vary depending on how tightly bale is packed. |
|||
|
Expanded dimension of one module |
100 m² ( 200, 300, 400 and 600 m² modules available on request) Large orders may be made to spec |
|||
|
Cell wall thickness |
0.2 mm (200 micron) (Options 150 micron to 400 micron) |
|||
|
Material |
Special formulation of High Density Polyethylene |
|||
|
UV protection additive |
Only on request (cells are normally underground hence UV protection is not needed) |
|||
|
Weld type |
Heat sealed line weld |
|||
|
Other |
Pre-strung with polypropylene rigging strings Galvanised joining pins supplied Y10 steel bar for staking out supplied Plasticiser / retarder supplied On-site training of site personel Site supervision or sub-contracting available |
|||
|
Available cell sizes |
||||
|
Product code |
300/210 |
400/280 |
600/420 |
800/560 (Special - Not a shelf item) |
|
Weld-to-weld (view collapsed) |
300 mm |
400 mm |
600 mm |
800 mm |
|
Cell diagonal when opened |
210 mm |
280 mm |
420 mm |
560 mm |
|
Cell side |
150 mm |
200 mm |
300 mm |
400 mm |
| Available depths |
"Regular" - Plane cell walls (Mechanical interlock formed by deformation of cell wall during installation) |
|||
|
75 mm |
Yes |
Yes |
No |
|
|
100 mm |
Yes |
Yes |
Yes |
|
|
150 mm |
Yes |
Yes |
Yes |
|
|
200 mm |
Yes |
Yes |
Yes |
On request |
|
250 mm |
Yes |
Yes |
Yes |
On request |
|
500 mm |
Yes |
Yes |
Yes |
On request |
|
1000 mm |
Yes |
Yes |
Yes |
|
|
2000 mm |
Yes |
Yes |
Yes |
|
| Available depths |
"Bubble Lock" - Keyed cell walls ex factory (Blow moulded key in each of the 4 walls of the cell formwork. Cast blocks have superior mechanical interlock) |
|||
|
75 mm |
Under pilot production - July 2007 |
|||
|
100 mm |
Yes |
|||
|
150 mm |
Yes |
Yes |
||
|
200 mm |
On request |
Yes |
||
|
Weight of bale containing 100 m² (expanded)if cell depth is 100 mm (Other depths and expanded sq m give proportional weights) Size of bale is approximately 1m x 1m x cell-depth for 100 m² (e.g. 1m x 1m x 0,1m for cell depth of 100 mm) |
37.5 kg |
25 kg |
18.8 kg |
12.5kg |
|
